SFP28 25Gb/s 850nm AOC
  • SFP28 25Gb/s 850nm AOC

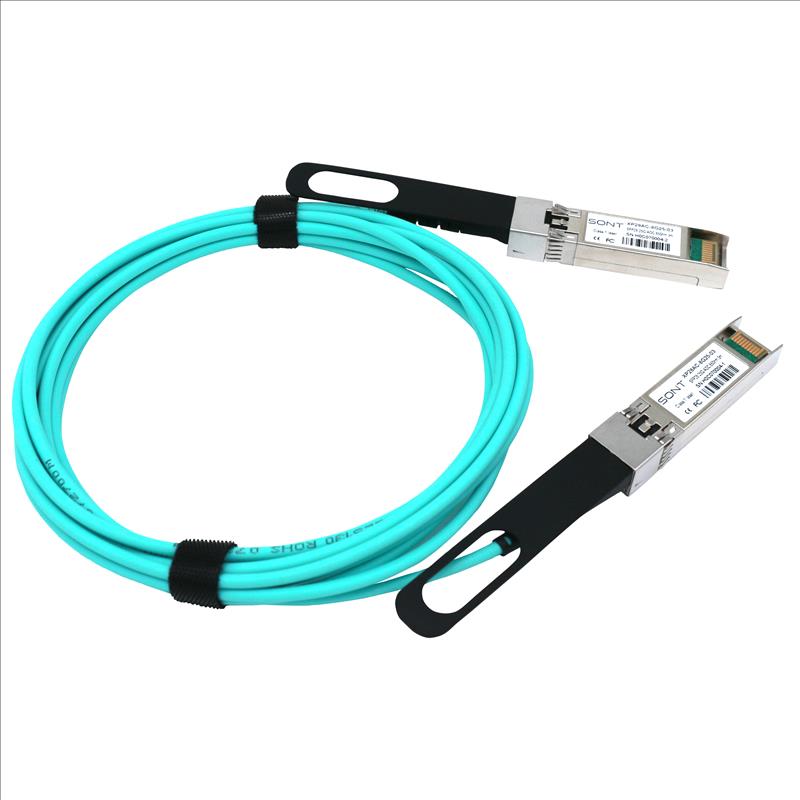

SFP28 25Gb/s 850nm AOC
XP28AC-8G25-XX

The XP28AC-8G25-XX is a SFP28 active optical cable (AOC) for 25Gbit/s Ethernet optical links.It is compliant with the SFF8431 for electrical specification and SFF8432 for mechanical specification. The optical output can be disabled by a TTL logic high-level input of Tx Disable. Tx Fault is provided to indicate that degradation of the laser. Loss of signal (LOS) output is provided to indicate the loss of an input optical signal of receiver or the link status with partner.

电话:

0755-26487154





● Switch to Switch Interface

● Router/Server Interface

● Other Optical Links


●Up to 25.78Gbps Data Links

●VCSEL Laser and PIN receiver

●Metal enclosure, for lower EMI

●wire interface with integrated Digital Diagnostic monitoring

●Hot-pluggable SFP28 footprint

●Specifications compliant with SFF 8472

●Single 3.3V power supply

●Power dissipation < 1.0 W

●Case operating temperature Commercial: 0&deg;C to +70&deg;C


●Distance:30m

●Data Rate:25Gb/s

●Low End Case Temperature (&deg;C):0

●High End Case Temperature (&deg;C):70

●Diagnostics:Digital

●Transmitter:VCSEL

●Receiver:PIN

●Voltage Supply:3.3

●Wavelength:850nm Band
