SFP+ 10G BIDI 10km Transceiver
  • SFP+ 10G BIDI 10km Transceiver

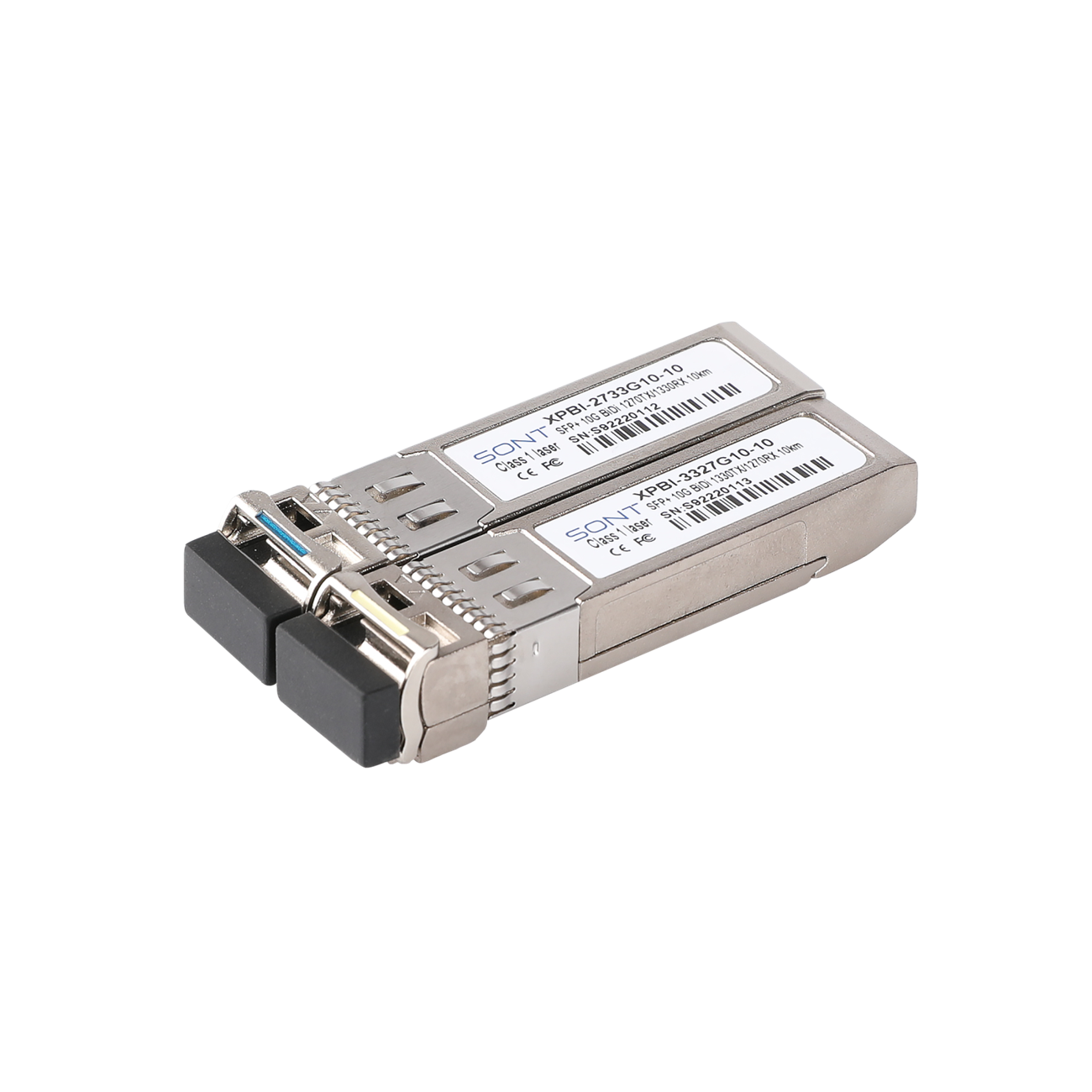

SFP+ 10G BIDI 10km Transceiver
XPBI-2733(3327)G10-10

XPBI-2733(3327)G10-10E is hot pluggable 3.3V Small Form Factor Pluggable (SFP) transceiver module ,It is designed expressly for high-speed communicattion that require rates up to 11.1Gbps,it designed to be compliant with SFF-8472 and SFP+MSA. The module data link up to 10km in 9/125um single mode fiber.

电话:

0755-26487154

● 10GBASE-BR & 10GBASE-LR/LW


● Up to 11.1Gb/s data links

● Up to 10Km  transmission on SMF

● 1270nm DFB Laser and PIN receiver for XPBI-2733G10-10F             1330nm DFB Laser andPIN receiver for XPBI-3327G10-10F

● EEPROM with serial ID Functionality

● 2-wire interface with integrated Digital Diagnostic monitoring

● Hot-pluggable SFP+ footprint

● Specifications compliant with SFF 8472

●  Compliant with SFP+ MSA with LC connector

● Single 3.3V power supply   10.Power dissipation < 1.5 W

● Case operating temperature : -40&deg;C to +85&deg;C

● Operating temperature: 0&deg;C to +85&deg;C



● Distance:10Km

● Data Rate:10Gb/s

● Low End Case Temperature (&deg;C):0

● High End Case Temperature (&deg;C):85

● Diagnostics:Digital

● Transmitter:DFB

● Receiver:PIN

● Voltage Supply:3.3

● Connector:LC

● Wavelength:1270nm/1330nm Band"
