QSFP28 CWDM4 100G 2km Transceiver (Commercial Temperature)
  • QSFP28 CWDM4 100G 2km Transceiver (Commercial Temperature)

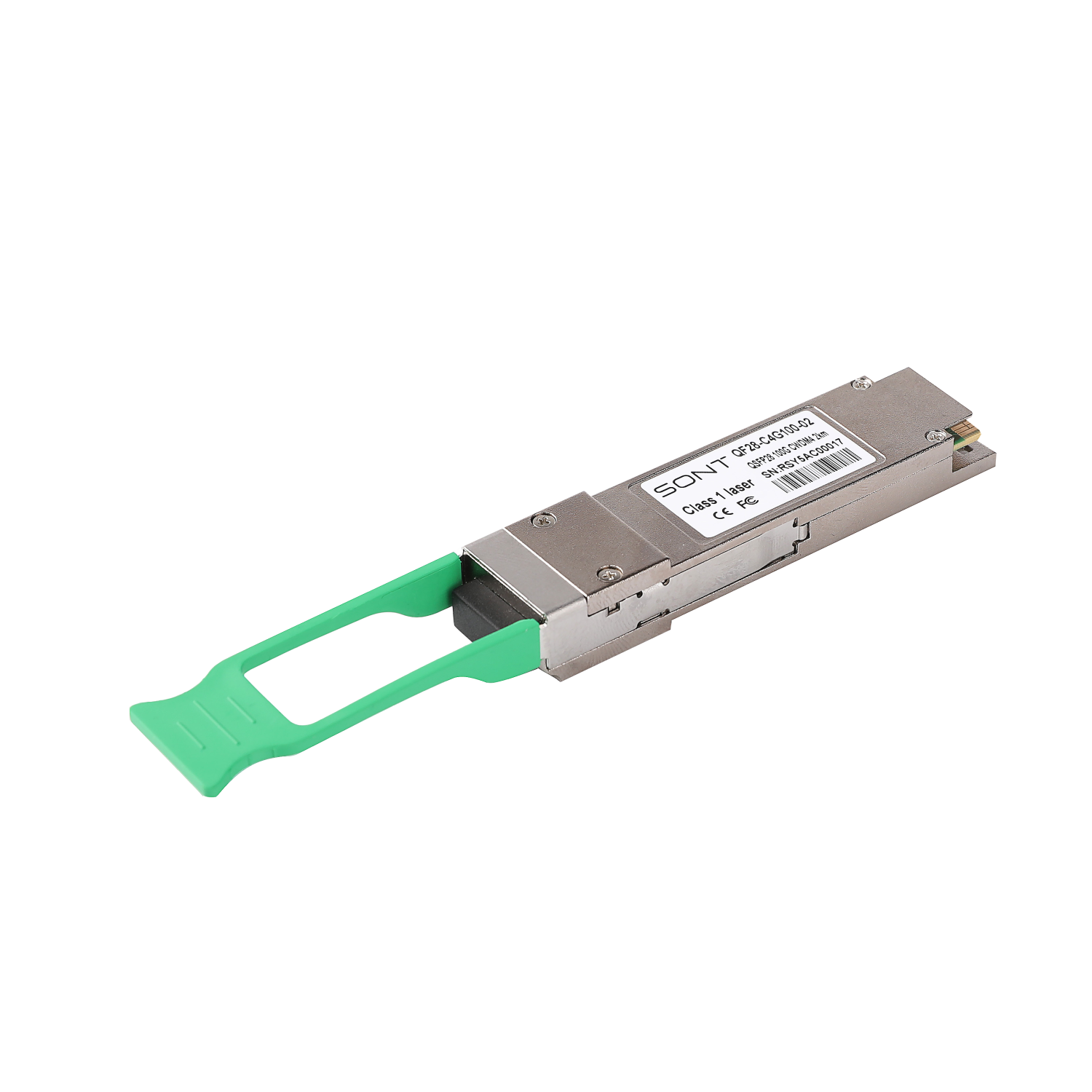

QSFP28 CWDM4 100G 2km Transceiver (Commercial Temperature)
QF28-C4G100-02

The 100G QSFP28 CWDM4 optical transceiver integrates the transmit and receive path onto one module. On the transmit side, four lanes of serial data streams are recovered, retimed, and passed on to four laser drivers, which control four lasers with 1271, 1291, 1311, and 1331 nm center wavelengths. The optical signals are then multiplexed into a single-mode fiber through an industry-standard LC connector. On the receive side, four lanes of optical data streams are optically demultiplexed by an integrated optical demultiplexer. Each data steam is recovered by a photodetector and transimpedance amplifier, retimed, and passed on to an output driver. This module features a hot-pluggable electrical interface, low power consumption, and 2-wire serial interface.

电话:

0755-26487154


  • Data Center Interconnect
  • 100G Ethernet
  • Enterprise networking



  • Hot-pluggable QSFP28 MSA form factor
  • Duplex LC receptacle optical interface
  • Transmitter: cooled 4x25Gb/s DML laser
  • Receiver: 4x25Gb/s PIN receiver
  • Single +3.3V power supply
  • Low power dissipation(Max:3.5W)
  • Built in digital diagnostic function
  • Operating case temperature range:0℃ to 70℃



  • Distance:2km
  • Data Rate :100Gb/s
  • Low End Case Temperature (°C):0
  • High End Case Temperature (°C):70
  • Diagnostics:Digital
  • Transmitter:DML
  • Receiver:PIN
  • Voltage Supply:3.3
  • Connector:LC
  • Wavelength:CWDM4 Band
