25Gb/s SFP28 DWDM 10km Transceiver
  • 25Gb/s SFP28 DWDM 10km Transceiver

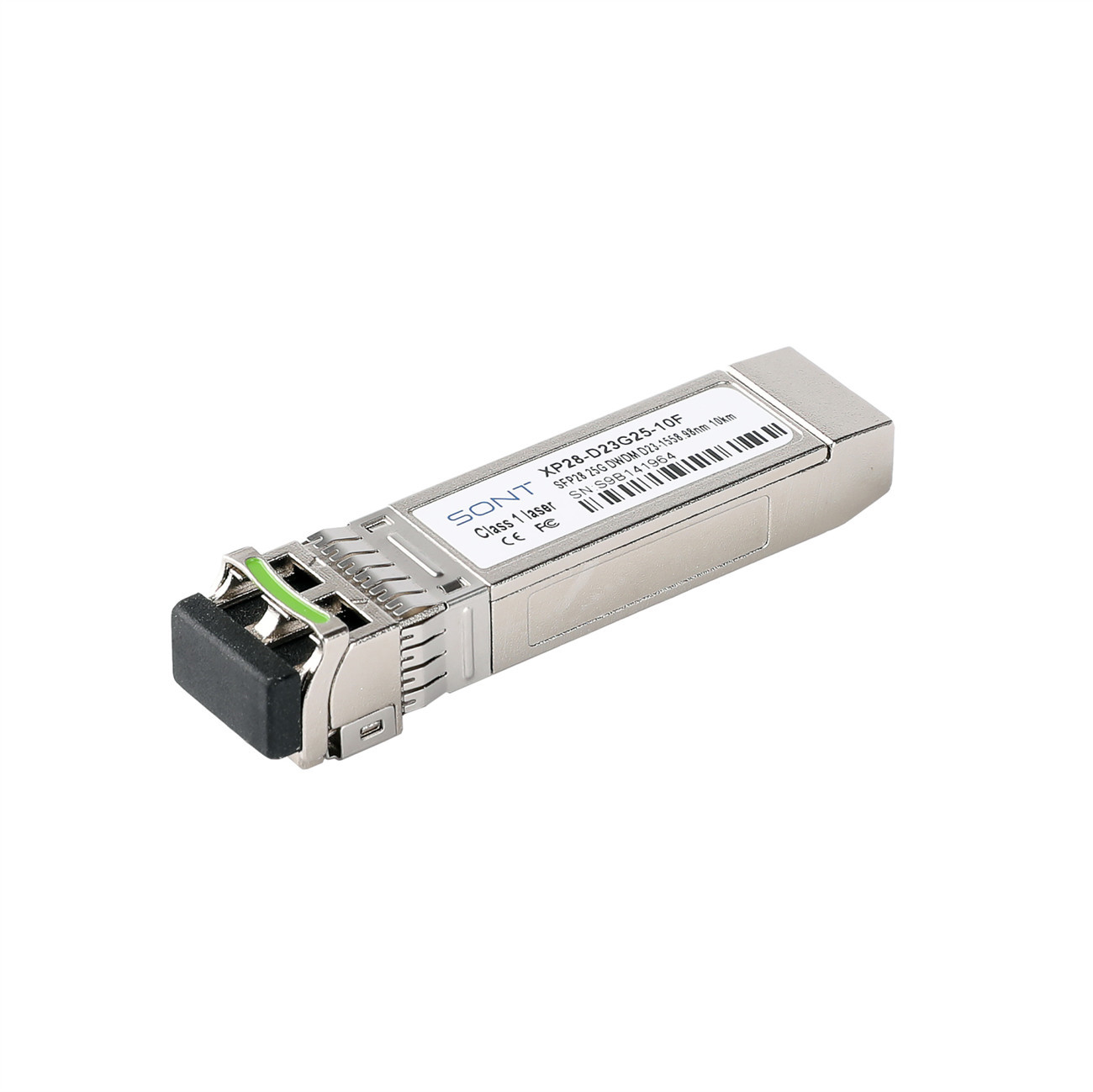

25Gb/s SFP28 DWDM 10km Transceiver
XP28-DXXG25-10

封装:SFP28 距离:10Km 速率:25Gb/s 波长:DWDM

电话:

0755-26487154

● Switch to Switch Interface


● Switched Backplane Applications


● Router/Server Interface


● Other Optical Links


● Up to 25.78Gbps Data Links


● Up to 10km transmission on SMF


● DWDM EML Laser and PIN receiver


● Metal enclosure, for lower EMI


● 2-wire interface with integrated Digital Diagnostic monitoring


● Hot-pluggable SFP28 footprint


● Specifications compliant with SFF 8472


● Compliant with SFF-8402 with LC connector


● Single 3.3V power supply


● Power dissipation < 2 W


● Case operating temperature


● Commercial: 0&deg;C to +70&deg;C


● Extended: -10&deg;C to +80&deg;C


● Industrial: -40&deg;C to +85&deg;C


● Distance:10km


● Data Rate:25Gb/s


● Low End Case Temperature (&deg;C):-40


● High End Case Temperature (&deg;C):85


● Diagnostics:Digital


● Transmitter:EML


● Receiver:PIN


● Volt+J12age Supply:3.3


● Connector:LC


● Wavelength:DWDM Band"
